LG2-H-4 SYSTEM, 10M CABLE
Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown. It also provides a fault relay to indicate problems or to cut out power to the crane. The system includes: laser, bracket, enclosed Laser Support Unit, reflector, and a 10m cable.
Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown. It also provides a fault relay to indicate problems or to cut out power to the crane. The system includes: laser, bracket, enclosed Laser Support Unit, reflector, and a 10m cable.
Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown. It also provides a fault relay to indicate problems or to cut out power to the crane. The system includes: laser, bracket, enclosed Laser Support Unit, reflector, and a 10m cable.
Features and Benefits
Magnetek's LaserGuard 2 is the most technologically advanced collision avoidance system available, using optical lasers to monitor your crane’s position. The system can take action at 3 distance set-points to manage crane-to-crane and wall-to-crane operation. Integrated intelligence monitors the power quality and laser signal integrity, which provides extra layers of safety.
MODEL NUMBERING
LG2 = LaserGuard 2
H = High Voltage (85-264 VAC, 120-370 VDC)
L = Low Voltage (9-36 VDC)
4 = NEMA 4 Enclosure
4X = NEMA 4X Enclosure
25 = 25-Meter Laser Sensor Cabling
40 = 40-Meter Laser Sensor Cabling
75 = 75-Meter Laser Sensor Cabling
IR = Extra Relay with 10-Meter Laser Sensor Cabling
FEATURES
8 in. to 150 ft. (0.2-45.7 m) detection range*
IP65 rated laser sensor**
85-264 VAC, 120-370 VDC; 9-36 VDC (optional)
Pushbutton programming for easy configuration
3 distance set-points, each with a relay contact
Visible laser light allows for easy alignment and quick setup
Status LEDs for seamless troubleshooting and diagnostics
cULus Compliance: None
CE Directives: None
* Runway length may be greater than detection range
** Not recommended for outdoor applications

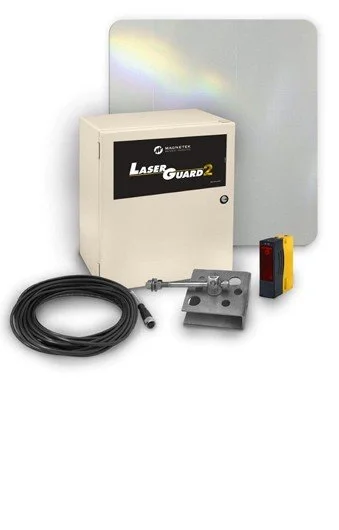

SYSTEM INCLUDES
Laser Sensor
Sensor Mounting Bracket
Sensor Cable
Laser Support Unit
2 x 2 ft (0.6 x 0.6 m) Reflector
