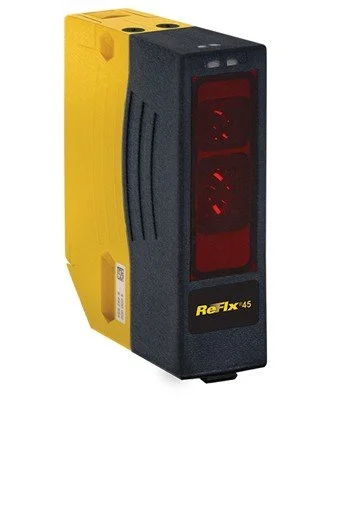

REFLX 45 SYSTEM
The ReFlx® 45 system is for indoor applications requiring a single stop. The accepted input voltage is 12-240V AC/DC with an operating range of 3-45 ft. This system includes: sensor, rigid mounting bracket, and adhesive backed reflector. NOTE: ReFlx 45 systems aren't supplied with cable.
The ReFlx® 45 system is for indoor applications requiring a single stop. The accepted input voltage is 12-240V AC/DC with an operating range of 3-45 ft. This system includes: sensor, rigid mounting bracket, and adhesive backed reflector. NOTE: ReFlx 45 systems aren't supplied with cable.
The ReFlx® 45 system is for indoor applications requiring a single stop. The accepted input voltage is 12-240V AC/DC with an operating range of 3-45 ft. This system includes: sensor, rigid mounting bracket, and adhesive backed reflector. NOTE: ReFlx 45 systems aren't supplied with cable.
Features and Benefits
Magnetek's ReFlx 45 is a cost-effective collision avoidance system, ideal for detecting a single distance point. The measurement intelligence is built into one compact housing, enabling easy installation. Don’t let the compact size fool you; the ReFlx 45 packs power and functionality into a light and inexpensive unit.
MODEL NUMBERING
AD = Adhesive Reflector Mount with Rigid Laser Sensor Mounting Bracket
DIN = DIN Reflector Mount with Rigid Laser Sensor Mounting Bracket
ADH = Adhesive Reflector Mount with Hinged Laser Sensor Mounting Bracket
DINH = DIN Reflector Mount with Hinged Laser Sensor Mounting Bracket
FEATURES
3-45 ft (0.9-13.7 m) detection range*
IP67 rated LED sensor**
12-240 VAC/VDC
1 distance set-point with integrated relay contact
Visible LED light allows for easy alignment and quick setup
cULus Compliance: UL 508
CE Directives: Low Voltage 2006/95/EC, EMC 2004/108/EC, EN/IEC 60947-5-2:2007
*Runway length may be greater than detection range
**Not recommended for outdoor applications
SYSTEM INCLUDES
LED Sensor
Sensor Mounting Bracket
2 x 2 ft (0.6 x 0.6 m) Reflector
